How to Formulate High-Build Epoxy Flooring Coating for Industrial Warehouses

Q: What hardener should I use for epoxy flooring in high humidity UAE conditions?

For high-humidity conditions typical of UAE summer months, Phenalkamine hardeners (derived from Cardanol) are the preferred choice — they are moisture-tolerant, cure on damp substrates, and resist blushing. Cycloaliphatic amine hardeners are also a good option for reduced blushing in humid environments.

Q: What is the correct mixing ratio for epoxy resin and hardener?

The mixing ratio depends on the specific resin EEW and hardener AHEW (Amine Hydrogen Equivalent Weight). For standard liquid epoxy resin (EEW ~190) with a typical polyamide hardener (AHEW ~95), the ratio is approximately 2:1 by weight (resin:hardener). Always calculate based on actual EEW and AHEW values from the COA — never use a fixed ratio without verification.

Q: How do I prevent pinholes in epoxy flooring applied in Saudi Arabia?

Pinholes are typically caused by outgassing from the concrete substrate (air or moisture released during curing). Prevent pinholes by ensuring the substrate is dry (maximum 4% moisture content), priming with a low-viscosity epoxy primer that penetrates pores, applying in thin coats, and avoiding application in peak heat of the day when substrates outgas rapidly.

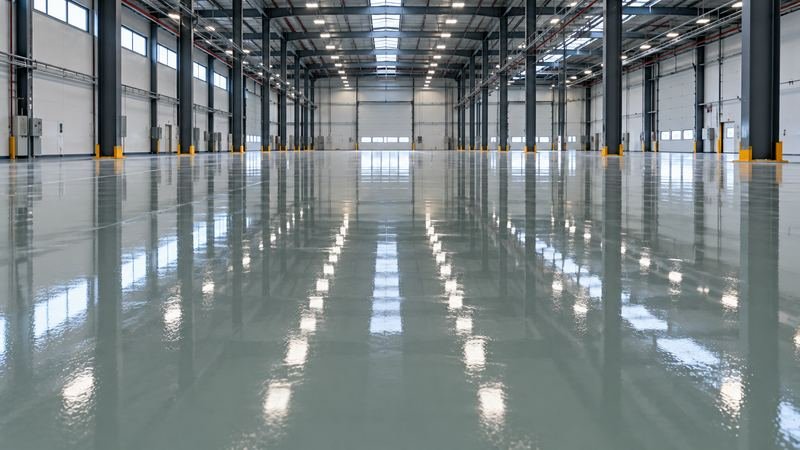

Epoxy flooring systems are the most specified industrial floor coating across the UAE and Saudi Arabia — used in warehouses, logistics facilities, factories, food processing plants, and increasingly in the NEOM and Vision 2030 mega-project facilities. A properly formulated high-build epoxy floor coating provides chemical resistance, mechanical durability, easy cleanability, and a professional finish. This guide covers the core raw materials, formulation approach, and critical considerations for GCC conditions.

Understanding High-Build Epoxy Systems

A high-build epoxy floor coating is typically applied at 300–600 microns dry film thickness (DFT), compared to the 50–100 microns of a standard solvent-borne topcoat. This requires a carefully balanced formulation with the right resin-to-hardener ratio, reactive diluent loading, filler content, and application viscosity.

The two-component system consists of:

Part A (Resin) — Liquid Epoxy Resin (Bisphenol A, EEW 182–194) as the primary component
Part B (Hardener) — Amine or polyamide hardener with stoichiometric ratio matched to the resin EEW

View epoxy resin and hardener range from Raykem →

Raw Material Selection for Epoxy Flooring

Epoxy Resin (Part A)

Standard liquid Bisphenol A epoxy resin (CAS 25068-38-6, EEW approximately 182–194 g/eq) forms the backbone of the flooring system. For a high-build system, the resin is typically loaded at 30–40% of Part A by weight. A reactive diluent (such as BGE — Butyl Glycidyl Ether) at 3–8% reduces viscosity for application while maintaining crosslink density.

Hardener Selection (Part B)

The choice of hardener is critical for GCC conditions:

Hardener Type	Cure Speed	Best For	GCC Note
Polyamide	Moderate	General purpose floors, flexible	Can blush at high humidity
Aliphatic Amine (IPDA)	Fast	Light-coloured, UV-stable topcoats	Better colour stability
Cycloaliphatic Amine	Moderate	Clear coatings, minimal blushing	Excellent for humid UAE/KSA conditions
Phenalkamine (Cardanol-based)	Fast, moisture tolerant	Damp or humid substrates	Best for high-humidity GCC seasons

Fillers and Pigments

A high-build system typically includes significant filler loading (25–40% of Part A) to achieve thickness, reduce cost, and control physical properties:

Barium Sulphate (Blanc Fixe) — excellent chemical resistance, high density, improves abrasion resistance
Calcium Carbonate — cost-effective extender, improves body and film build
Silica (Quartz Powder) — hardness, abrasion resistance, anti-slip texture
Iron Oxide Pigments — for coloured floors (red, grey, beige are most common in GCC facilities)

Typical High-Build Epoxy Flooring Part A Formulation

Component	Function	% by weight
Liquid Epoxy Resin (BPA, EEW 182–194)	Primary binder	32–38%
Reactive Diluent (BGE/BDDGE)	Viscosity reduction, flexibility	3–6%
Barium Sulphate	Chemical resistance, density	15–20%
Calcium Carbonate	Extender, body	10–18%
Silica (fine grade)	Abrasion resistance	5–10%
Iron Oxide Pigment (colour)	Colour, UV stability	2–5%
Dispersing Agent	Pigment/filler wetting	0.2–0.5%
Anti-settling Agent (organoclay/fumed silica)	Storage stability	0.3–0.8%

Application in GCC Climate Conditions

Applying epoxy flooring in the GCC requires attention to temperature and humidity. Substrate temperature should be at least 3°C above the dew point to prevent condensation. In the UAE and Saudi Arabia coastal zones during humid summer months, this can be challenging. Using phenalkamine or moisture-tolerant cycloaliphatic hardeners significantly reduces blushing and adhesion failures in high-humidity conditions.

Pot life is also critical — at 35°C ambient, a standard epoxy system may have a pot life of only 20–30 minutes. Phenalkamine hardeners generally offer more forgiving pot life in warm conditions. Plan batch sizes accordingly.
