Pinholes are one of the most common and frustrating defects in epoxy flooring — particularly on Saudi Arabia's industrial warehouse projects and UAE logistics hub floors, where high humidity, outgassing concrete, and aggressive construction timelines combine to create challenging application conditions. This guide covers the root causes of epoxy flooring pinholes and the raw material and application solutions that prevent them.
The Two Primary Pinhole Mechanisms

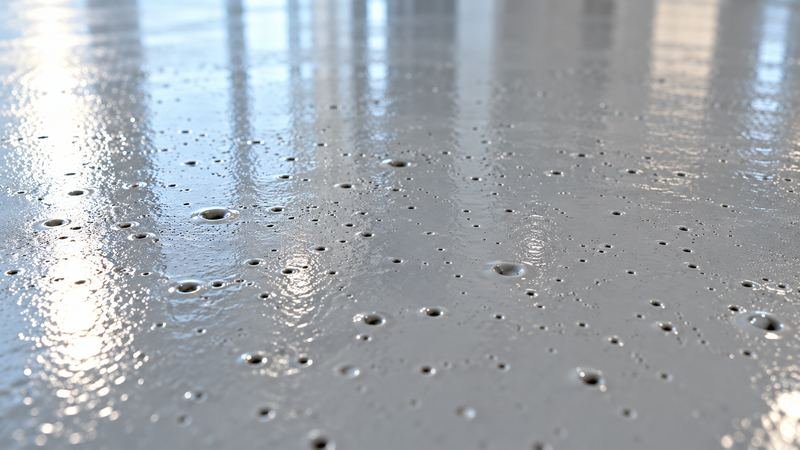

1. Moisture-Driven Pinholes: When humid air contacts the amine hardener during cure, CO₂ reacts with free amine groups to form amine carbamate bubbles within the film. These appear as pinholes (small bubbles that break the surface) or craters (closed bubbles that deform the surface).
2. Substrate Outgassing: Warm concrete contains air in its pores. As the slab heats during the GCC daytime, this air expands and forces through the uncured epoxy film, leaving pinhole channels. This is particularly severe on porous concrete or concrete applied in direct sunlight.
Raw Material Solutions
| Problem | Raw Material Solution | How It Helps |
|---|---|---|
| Amine blushing / moisture reaction | Switch to phenalkamine hardener | Phenalkamine reacts faster with epoxy than with CO₂/moisture — dramatically reduces blush and pinhole formation in humid conditions |
| Substrate outgassing | Low-viscosity epoxy primer (or broadcast sand into wet epoxy) | A penetrating low-viscosity primer seals concrete pores before the self-levelling coat is applied, preventing air escape through the topcoat |
| Trapped air from mixing | Add 0.1–0.3% silicone defoamer to Part A | Silicone defoamer (polydimethylsiloxane type) breaks air bubbles during mixing and application; must be used at minimum effective level to avoid cratering |
| Fast surface skin formation trapping air | Use slower-evaporating reactive diluent (e.g. benzyl alcohol instead of xylene) | Longer open time allows air bubbles to escape before the surface skins over |
| Excess viscosity causing poor self-levelling | Adjust with Benzyl Alcohol (reactive diluent) — not conventional solvent | Benzyl alcohol reduces viscosity without increasing VOC or reducing crosslink density — allows better flow and air release without extended open time problems |
Application Protocol for GCC High-Humidity Conditions
- Test substrate moisture: Use carbide bomb test (CM). Target ≤4% CM for standard epoxy. For higher moisture, use moisture-tolerant (phenalkamine) primer.
- Apply primer and broadcast sand: A low-viscosity epoxy primer penetrating into the slab seals outgassing paths. Broadcasting silica sand into the wet primer further seals the surface.
- Mix carefully: Use a low-speed mixer (300–400 RPM). Mix for 3 minutes, then transfer to a clean container and mix for a further 1 minute (the "double-bucket" method). This eliminates unmixed material from bucket sides and bottom.
- Allow bubble release: After mixing, allow the mixed material to stand for 2–3 minutes in the bucket before application. This allows large air bubbles introduced during mixing to escape.
- Apply and back-roll: Apply with a notched squeegee, then back-roll with a short-nap (6mm) foam roller within 5–10 minutes. The rolling action breaks surface bubbles before the skin forms.
- Use a spike roller: Immediately after back-rolling, spike-roll the entire surface to release any remaining air trapped in the body of the film.
- Timing: In the UAE and Saudi Arabia, apply before 10 AM. Concrete temperature rising above 30°C dramatically increases outgassing. Use temporary shading for outdoor or partially covered areas.
