Fire Safety Compliance — Intumescent Coatings for Saudi Civil Defense Codes

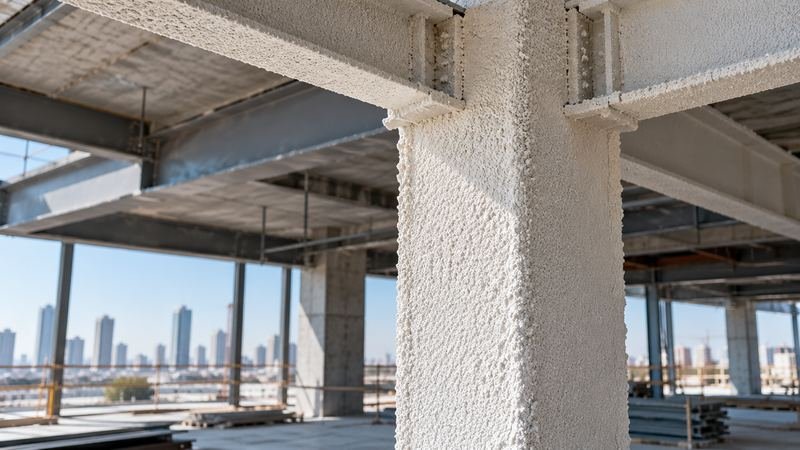

Structural steel fire protection is a mandatory requirement for commercial, industrial, and multi-storey residential construction across Saudi Arabia. The Saudi Civil Defense Authority enforces fire safety codes that specify minimum fire resistance periods for structural elements — and intumescent coatings are one of the primary means of achieving these requirements. For coating contractors, formulators, and raw material suppliers operating in the Saudi market, understanding the compliance framework and the raw materials that make intumescent systems work is essential commercial knowledge.
Saudi context: Saudi Arabia has been significantly strengthening its building and fire safety codes in response to several high-profile fire incidents. The Ministry of Interior (Civil Defense Presidency) actively enforces fire protection requirements on new construction, particularly on giga-project sites like NEOM, Red Sea, and Diriyah Gate.
How Intumescent Coatings Work
Intumescent coatings are passive fire protection systems that expand dramatically when exposed to heat above approximately 200°C. The expansion creates a low-conductivity carbonaceous char that insulates the steel structure, slowing the rate at which steel temperature rises during a fire. Steel loses approximately 50% of its load-bearing capacity at 550°C — intumescent coating buys time for evacuation and firefighting.
The chemistry of expansion involves three components working together:
- Acid source (ammonium polyphosphate, APP): Decomposes to release phosphoric acid which catalyses charring
- Carbon source (pentaerythritol, dipentaerythritol): Reacts with phosphoric acid to form carbonaceous char
- Blowing agent (melamine): Decomposes to release nitrogen gas which inflates the char to create the insulating foam
Raw Material Composition — Waterborne Intumescent Coating
| Component | Raw Material | Typical % (dry weight) | Function |
|---|---|---|---|
| Binder | Acrylic or vinyl-acrylic emulsion | 20–30% | Film formation, adhesion to steel, physical protection of intumescent system during service |
| Acid source | Ammonium Polyphosphate (APP, Phase II, coated) | 25–35% | Phosphoric acid source for charring reaction; coated grade for water resistance |
| Carbon source | Pentaerythritol (PE) or Dipentaerythritol | 10–20% | Reactive carbon skeleton for char formation |
| Blowing agent | Melamine (technical grade) | 10–15% | Nitrogen gas source for char expansion |
| Filler | Titanium dioxide, calcium carbonate | 5–10% | Opacity, whiteness, cost optimisation |
| Synergist | Zinc borate, expandable graphite | 2–5% | Enhances char strength and flame resistance |
| Coalescent / Solvent | Texanol, propylene glycol | 1–3% | Film formation, freeze-thaw stability |
| Rheology modifier | HASE thickener, HEC | 0.5–1.5% | Application viscosity, sag resistance at high DFT |
Compliance and Testing Requirements
For use on Saudi civil defense-regulated projects, intumescent coatings must:
- Be tested to BS 476 Part 20/21 or UL 263 (or equivalent) and hold a valid fire test certificate specifying the fire resistance period achievable at specified DFT and steel section factor ranges.
- Be applied by applicators with documented training and quality control procedures. Saudi Civil Defense increasingly requires certified applicator documentation on project sites.
- Be inspected by an approved third-party inspection authority (SASO-registered) who verifies DFT compliance on the completed structure.
- Be covered by a manufacturer's fire performance warranty for the project lifetime (typically 10–25 years depending on project specification).
Interior vs Exterior Application in Saudi Climate
Saudi Arabia's extreme climate creates specific challenges for intumescent coatings:
- High temperature exposure: Steel temperatures in unventilated Saudi industrial buildings can reach 60–70°C in summer — approaching the activation temperature of low-quality intumescent systems. Specify systems with activation temperature above 200°C and test data at elevated ambient temperatures.
- UV degradation: Waterborne intumescent coatings are not UV-stable and must be topcoated for any exterior or partially exposed application. A compatible UV-resistant PU or epoxy topcoat is mandatory.
- Humidity cycling: Coastal Saudi locations (Jeddah, Yanbu, Jubail) experience high humidity that can affect waterborne intumescent systems over time — ensure the product has documented testing for humid tropical exposure conditions.
Sourcing Intumescent Raw Materials from Raykem
Raykem supplies construction chemical raw materials including ammonium polyphosphate (APP, coated Phase II grade), pentaerythritol, and melamine — the three key actives in any waterborne intumescent formulation — to coating manufacturers across the UAE and Saudi Arabia. Our paint and coating raw material range includes acrylic emulsions suitable for intumescent binder applications. Contact our technical team for product specifications, pricing, and minimum order quantities.
Need These Raw Materials for Your Process?
Raykem supplies industrial and specialty chemicals to manufacturers across the UAE, Saudi Arabia, and GCC. Get a quote within 24 hours.
Request a Quote →Frequently Asked Questions
The primary standard referenced by Saudi Civil Defense for structural steel fire protection is NFPA 101 (Life Safety Code) and the International Building Code (IBC) as adopted and modified by Saudi Arabia. The fire resistance period required depends on the building occupancy type and construction category — typically 1, 2, or 3 hours for structural steel in commercial and industrial buildings. Intumescent coatings must be tested and certified according to UL 263 (US standard) or BS 476 Part 20/21 (UK/international standard) to demonstrate the fire resistance period they can achieve at specific dry film thicknesses.
The required DFT (dry film thickness) depends on the steel section factor (Hp/A — the ratio of the perimeter of the section to its cross-sectional area) and the critical temperature of the steel being protected. For a typical open-section column with moderate Hp/A (~150 m⁻¹), a 2-hour fire rating typically requires 2,000–3,500 μm DFT of an approved intumescent coating. For heavier sections (low Hp/A), less DFT is needed. Always refer to the specific intumescent product's fire test data and Hp/A design tables — the coating manufacturer's technical department should provide the required DFT for your specific sections.
Exterior-grade intumescent coatings (also called 'hydrocarbon' intumescent or weather-resistant intumescent) are available and can be used on exterior structural steel in Saudi Arabia. These systems are typically solventborne (higher VOC) and have significantly better UV, moisture, and temperature resistance than standard interior water-based intumescent coatings. Given Saudi Arabia's extreme UV radiation and temperature cycling, only exterior-rated intumescent systems from manufacturers with documented GCC or comparable climate exposure testing should be specified for exterior applications. A protective topcoat is also required to protect the intumescent layer from weathering.
